| 1991 Nissan Pulsar GTi-R |
 |
| 1991 Nissan Pulsar GTi-R |
- RA models: GTI-RA (aka RA / Alpha / Road / Luxury), model number EBYNRVFN14xxxx. This was the normal road car, which came standard with air conditioning, power windows and mirrors, and ABS. Roughly half way through the production (August 1992), Nissan made a range of cosmetic changes to the interior of the RA model (mostly replacing trim that was unique to the GTI-R with trim that was common to other models in the N14 range). Although not advertised or branded as such, they were extensive enough (around 10 items) to be noticeable as a different phase or series, and are defined by chassis numbers RNN14-100000 and above. They were priced at ¥2,270,000.
- was stripped-down as a base for motorsport use (Group N rallying in particular). It had the luxury trimmings such as air conditioning, power windows, and ABS removed as standard, and the simple interior trim from the base model Pulsar which reduced the curb weight by 30 kg (66 lb) to 1,190 kg (2,624 lb). Some of the luxury items were available as an option. The engine remained the same as the RA model, but there were a few mechanical changes such as a close-ratio gearbox and a front limited slip differential instead of the open differential from the RA model.
 |
| 1991 Nissan Pulsar GTi-R |
- Nismo: Nismo offered a "complete car" version based on the RB model featuring many of the Nismo rally options (such as suspension, limited slip differentials, seats, roll cage and foot rests). A confirmed total of 21 were produced, all of which are individually numbered on a special Nismo VIN plate on the firewall. Some were used by Nissan and Nismo as promotional vehicles, the rest were ordered by private buyers. They were priced at ¥3,140,000.
- Group A: these rally models were not sold to the general public. They were specifically built and used for the WRC by the defunct Nissan Motorsports Europe (NME) as the works cars.
After NME was disbanded, the cars were sold to private buyers, predominately in Europe, where some made their way into rallycross events. Tony Bardy is currently still competing in UK rallies using the "J3" NME car.
The Pulsars were manufactured in Japan between August 1990 until November 1994. The total number produced during that time was somewhere between 12,000 and 15,000. It is unclear how many of them were RA and RB models.
The first year of production (1990–91) was the largest due to Nissan needing to fulfil the FIA Group A regulations (of 5,000 models total, with 500 of them homologated) in order to enter the model as a manufacturer in the WRC.
The RHD Sunny models for Europe were produced from 1992 until January 1995. No recorded data has been found for LHD models. No verifiable evidence has been available of Sunny GTI-R production numbers, but it is generally accepted that less than 1000 were produced in total. They were officially sold in the UK, Germany, the Netherlands, Iceland, Italy and France.
Nissan Sunny was the badge used for the European-delivered GTI-R. They had a different chassis number of EGNN14. The engine output specifications (220 PS / 162 kW and 267 Nm / 197 lb·ft) were slightly less due to the electronic control unit having different fuel and ignition maps to compensate for the lower octane fuel available in those areas. The Sunny GTI-R had several physical differences to the Pulsar, such as the rear number plate surround and rear fog lights. The interior also varied from the Pulsar with some of the more basic trim from the RB model.
The Pulsar GTI-R was manufactured in Japan between August 1990 until November 1994.[43] The Sunny GTI-R was produced from February 1992 until October 1993.[37] The first year of production (1990–1991) was the largest[43]due to Nissan needing to fulfil the FIA Group A regulations at the time (5,000 models total, with 500 of them homologation models) in order to enter the car as a manufacturer in the WRC.
 |
| 1991 Nissan Pulsar GTi-R |
 |
| 1991 Nissan Pulsar GTi-R |
 |

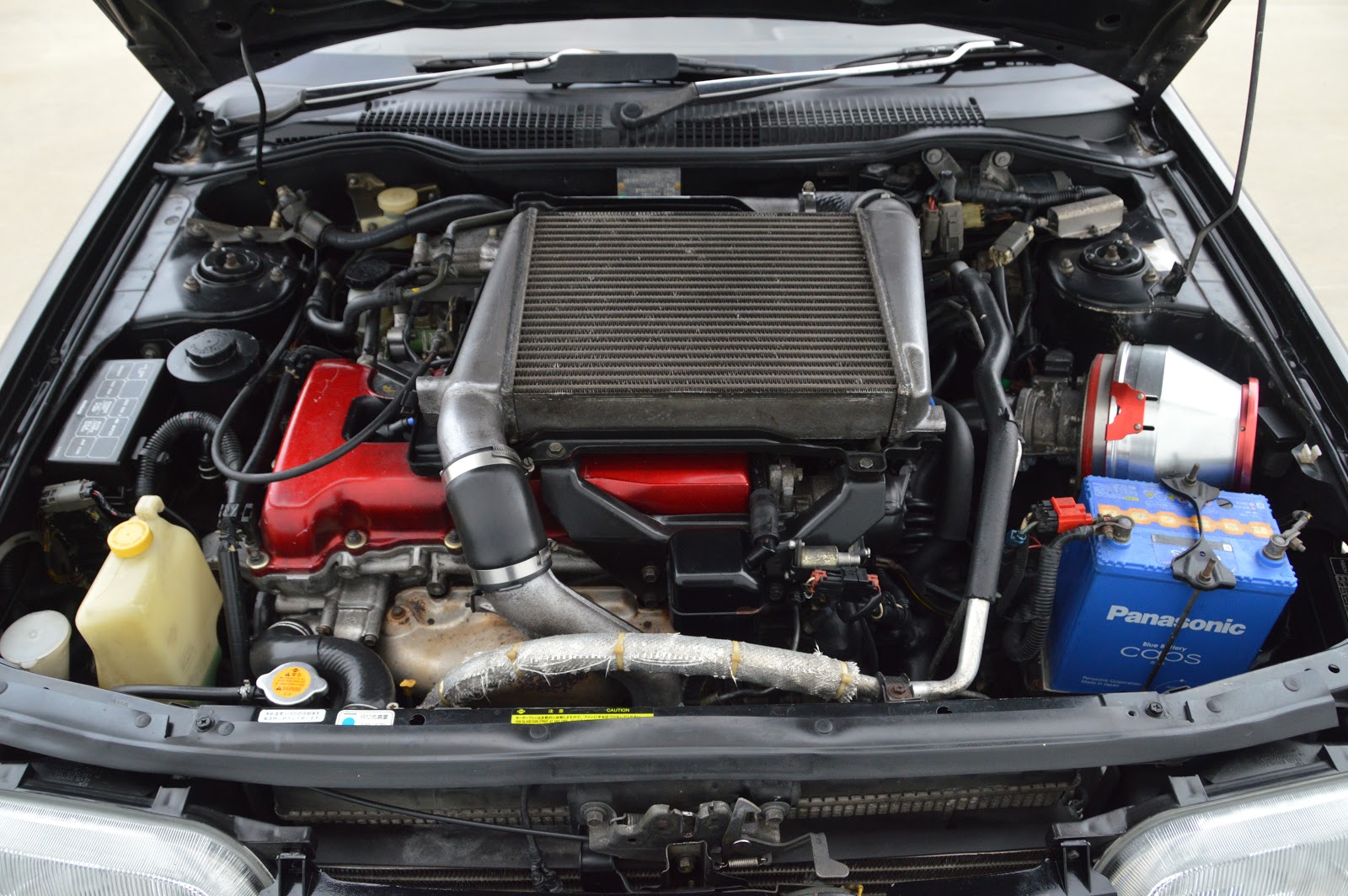

| SR20DET in a Pulsar GTi-R |
Nissan Pulsar GTi-R Used car review
FUEL FILTER______ 16400 53J10 £10.20
OIL FILTER ______15208 70J00 £5.20
WASHER,DRAIN ______11026 01M02 £1.10
HT LEADS 22450 54C27 ______£42.00
REPAIR KIT DUST(p/s front hub side)_______39241 63Y25 £22.00
RADIATOR ASSY _______21410 66Y01 £189(thin)
RADIATOR ASSY_______ 21410-63C00 £???(thick)
ROTOR,HEAD _______22157 54C01 £6.40
CAP,DISTRIBUTOR_______ 22162 53J00 £15.40
PUMP-WATER ASSY _______21010-54C00 £41.00?
LAMBDA SENSOR________ 22690-54C00 £86.00?
GASKET-ROCKER C ________13270 53J05 £7.20
GASKET-TURBO CH________ 14445 26E00 £15.20
GASKET-EXHAUST ________20691 58E01 £2.90
GASKET ________14415 17M00 £11.70
GEARBOX OIL SEAL ________38342 56E00 £5.20
TRANSFERBOX OIL SEAL___________ 33111-56E00 £7.90
COIL LEAD__________ 22450-53J11 £12.40
ROTOR ARM___________ 22157 54CO1 £ 6.40 +vat
CV BOOT KIT(FRONT)___39241 63Y25 £21.50 +vat
AIR FILTER____________16546 3J400 £10.40 +vat
SERV MAN VOL1 (ENG)____SM1E1N4BGO £84.60 (RARE AS ROCKING HORSE SH*T) +vat
SERV MAN VOL2________SM1E2N4BGO £66.60 +vat
HAND BRAKE SWITCH____36011 50Y00 £ 7.20 +vat
FUEL CABLE THING______H4659 50A05 £ 9.70 +vat (RELEASE MECHANISM IN BOOT)
DISTRIBUTOR POWER TRANSISTOR _______22020 53J10 £48 +VAT
IDLE AIR CONTROL VALVE AIR REGULATOR (BOLTED ONTO THE CYLINDER HEAD UNDER THE I.A.C.V WITH A BLACK SIDE TO IT) _______22660-93L00 £85.30+VAT
STRUT KIT-FRONT SUSPENSION, RH______54302-69C25 £116 + vat
STRUT KIT-FRONT SUSPENSION, LH______54303-69C25 £116 + vat
STRUT KIT-REAR SUSPENSION, RH______55302-69C25 £116 + vat
STRUT KIT-REAR SUSPENSION, LH______55303-69C25 £116 + vat
Front Ornament (P Badge) 10/90 -10/92 62311 62892-62C00
Front Ornament 10/92 - 01/93 62311 62892-73C00
Front Ornament 01/93 - 62311 62892-73C60
Rear Air Spoiler Assy-Roof 10/90 - KH3 96030R 96030-54C25
Rear Air Spoiler Assy-Roof 10/90 - AJ4 96030R 96030-54C26
Rear Air Spoiler Assy-Roof 10/90 - 05/94 TJ1 96030R 96030-54C27
Rear Air Spoiler Assy-Roof 10/90 - 10/92 KJ7 96030R 96030-54C28
Rear Air Spoiler Assy-Roof 10/90 - 531 96030R 96030-54C85
Rear Air Spoiler Assy-Roof 10/92 - FM0 96030R 96030-54C27
Tow Hole Cover 10/90 - AJ4 62228 62228-54C00
Tow Hole Cover 10/90 - KH3 62228 62228-54C02
Tow Hole Cover 10/90 - TJ1 62228 62228-54C03
Tow Hole Cover 10/90 - KJ7 62228 62228-54C04
Tow Hole Cover 10/90 - 531 62228 62228-54C05
Tow Hole Cover 10/92 - FM0 62228 62228-74C02
Front Bumper (Fascia Kit) 10/90 - 05/92 AJ4, KJ7, 531 62650S 62022-54C25
Front Bumper (Fascia Kit) 10/90 - 05/92 KH3, TJ1 62650S 62022-54C26
Bonnet (No ventts just Holes) All All 65100 65100-653C0
Bonnet ventt Main (Air Intake) All All 65815 65852-54C00
Bonnet vent (Louver) RH 10/90 - AJ4 65810J 65832-54C00
Bonnet vent (Louver) RH 10/90 - KH3 65810J 65832-54C02
Bonnet vent (Louver) RH 10/90 - TJ1 65810J 65832-54C03
Bonnet vent (Louver) RH 10/90 - 10/92 KJ7 65810J 65832-54C04
Bonnet vent (Louver) RH 10/90 - 531 65810J 65832-54C05
Bonnet vent (Louver) RH 10/92 - FM0 65810J 65832-54C08
Bonnet vent (Louver) LH 10/90 - AJ4 65811J 65833-54C00
Bonnet vent (Louver) LH 10/90 - KH3 65811J 65833-54C02
Bonnet vent (Louver) LH 10/90 - TJ1 65811J 65833-54C03
Bonnet vent (Louver) LH 10/90 - 10/92 KJ7 65811J 65833-54C04
Bonnet vent (Louver) LH 10/90 - 531 65811J 65833-54C05
Bonnet vent (Louver) LH 10/92 - FM0 65811J 65833-54C08
Front Grille Kit 10/90 - AJ4 62301 62310-54C25
Front Grille Kit 10/90 - KH3 62301 62310-54C27
Front Grille Kit 10/90 - TJ1 62301 62310-54C28
Front Grille Kit 10/90 - KJ7 62301 62310-54C29
Front Grille Kit 10/90 - 531 62301 62310-54C91
Rear Number Plate surround 10/90 - 05/92 90810M 90810-62C10
Rear Number Plate surround 05/92 - 90810M 90810-62C00
Rear Bumper (Fascia Kit) 10/90 - 05/92 All 85010S 85022-50C25
Rear Bumper (Fascia Kit) 10/92 - All 85010S 85022-50C26
Rear Window (Glass) All All 90313 90300-50C01
Air Filter element replacement All All 16546 16546-V0100
Air Filter (Air Box) All All 16500 16500-54C10
MAF (Mass Air Flow Meter) All All 22680 22680-54C00
Radiator Assem All All 21400 21410-63C00
Radiator Hose (Lower) All All 21503 21503-54C01
Radiator Hose (Upper) All All 21501 21501-54C00
Front Strut Kit (RH) - No ABS 10/90 - 05/92 All 54302K 54302-69C25
Front Strut Kit (RH) - With ABS 10/90 - 05/92 All 54302K 54302-69C26
Front Strut Kit (RH) - No ABS 05/92 - All 54302K 54302-69C27
Front Strut Kit (RH) - With ABS 05/92 - All 54302K 54302-69C28
Front Strut Kit (LH) - No ABS 10/90 - 05/92 All 54303K 54303-69C25
Front Strut Kit (LH) - With ABS 10/90 - 05/92 All 54303K 54303-69C26
Front Strut Kit (LH) - No ABS 05/92 - All 54303K 54303-69C27
Front Strut Kit (LH) - With ABS 05/92 - All 54303K 54303-69C28
Rear Stabilizer All All 56230 56230-69C00
Rear Strut Kit (RH) All All 55302K 55302-59C25
Rear Strut Kit (LH) All All 55303K 55303-69C25
Brake Rotor Disc (Front) All All 40207 40206-54C01
Front Wheel Bearing (NSK) All All 40210 40210-50Y00
Front Wheel Bearing (NTN) All All 40210 40210-50Y05
Prop Shaft Assy All All 37000 37000-54C05
Clutch Slave Cylinder Kit All All 30620 30620-80E20
Clutch Tube Assy (MastertoSlave) All All 30650 30850-63C00
Clutch Release Bearing All All 30502 30502-0W720
Clutch Master Cylinder Kit All All 30610 30610-63C52
Clutch Fluid Reservoir (inc Braket) All All 30609 30617-63C00
Transfer Assembley All All 32010M 32010-54C18
Front Differential All All 38711 38411-56E00
Bearing - Diff Side All All 38440N 38440-56E00
Front Driveshaft Kit (LH) (No ABS) All All 39101 39101-63Y01
Front Driveshaft Kit (LH) (With ABS) All All 39101 39101-63Y11
Front Driveshaft Kit (RH) (No ABS) All All 39100M 39100-63Y01
Front Driveshaft Kit (RH) (With ABS) All All 39100M 39100-63Y11
Power Steering Pump Kit All All 49110 49110-54C00
Side Skirt End Cap (RH) All All 76856-50C00
Side Skirt End Cap (LH) All All 76857-50C00
Umbrella is 96546-76M00
Heater Control lightbulb - 25196-89905 - £3.20 +vat each
Thermostat 21200-53J00 £13.90+vat
oil pressure sender V507032J00 £69.90
oil seal on the back of the transfer box (prop shaft)
3314256E00 £12.30 + vat
drop resistor part no 22698 54c00 £81 inc vat
Overhaul Gasket set 10101 - 54C26
Valve stem oil seals------N13207D4201 and N1320753F00 £2.90 each
Cylinder head bolts------11056-54C00 £4.70 each
Inlet manifold gasket----16175-54c00 £4.40
Exhaust manifold gasket---14036-53j00 £14.90
main bearings----12207-54c00 £8.70 each(pair)
Crank thrust washer---12280-60j00 £9.70 set
front crank seal---13510-v7200 £5.40
rear crank seal----12279-18v00 £19.50
Pulley Belt - Water Pump/Power Steering, Nissan, 11950 54C00, Bosch 4PK920 or 4PK919
Pulley Belt - Alternator (No A/C), Nissan, AY140-40830, Bosch 5PK835 or 4PK830
Pulley Belt - Alternator/Air Conditioner, Nissan, 11920 53J00, Bosch 6PK 1035
Standard clutch plate - 30100-79E14
Heater Control illumination:
QTY Req' Unit Price
N2486035F01 N/STK SOCKET & BULB A 1 £4.30
N2754550J00 N/STK LAMP ASSY-HEATE 2 £4.30
N2754550J05 N/STK LAMP ASSY-HEATE 1 £4.30
Aerial Mast*
28215-69C00*
Alternator*
23100-64J00
Badge - GTIR*
90896-50C08*
Badge - P*
62892-50C00*
CV Boot Kit (Pair)*
48203-53Y25*
CV Boot Kit (Drivers Inside)
39741-55E28*
CV Boot Kit (Drivers Outside)
39241-63Y25*
Clutch Fork Boot*
30542-03E10*
Clutch Master Cylinder Kit*
30611-2T025*
Clutch Slave Cylinder*
30620-80E61**
Coil (Ignition)
22433-55S10*
Coil Transistor
22433-53J20*
Fan Resistor*
N2715-00W014*
Fuel Cap*
17251-J7600
Fuel Filter*(Without ABS)
16400-41B05*
Fuel Filter*(With ABS)
16400-53J10*
*
Gasket (Metal) Turbo to Dump Pipe*
15208-53J00*
Gasket - Engine Kit**
10101-54C26*
Gasket - Manifold (Throttle Bodies)*
14035-54C00*
Gearbox Boot Strike Rod*
32859-03E01*
Ignition Leads*
22450-53J88*
Ignitor Pack / Power transistor / Ignition Amplifier*
22020-53J20*
Injectors*(Nismo)
555cc: 16600-RR420
600cc: 16600-RRR60*
Key - Blank*
KEY00-00118*
Control Arm*(NSF)
54501-69C60*
Oil 7.5w-30 (5 litres)*
10114-J9000*
Oil Filter*
15208-53J00*
Oil Pressure Regulator Kit*
15132-54C01*
Power Rack & Pinion Boots Kit*
48204-53Y25 & 48203-53Y25*
*
Radiator Cap*
21430-J7000 *
Radiator Hose - Lower *
21503 54C01*
*
Radiator Hose - Upper*
21501-54C00*
Restrictor Hose*
22320-54C00*
Rocker Cover Spark Plug Rings*
13270-53J13*
Spare Wheel Bolt*
74810-50A00*
Spark Plugs*- NGK (Platinum)*
PFR7B-9*
Spark Plugs*- NGK (Iridium)*
BKR7EIX-11
Sump Plug Washer *
15193-P9000*
Tailgate Hinges*
90400-50C00*
Thrust Bearing*(Clutch)
30502-1W720 *
Timing Chain
13028-53J03*
Water Pump*
21010-54C00*
Water Temp Sensor (Engine Coolant)*
22630-5E02
Wheel Bearings*(N14)
40210-50Y00*
Windscreen Mould*
72761-50C20*
Hub unit 402202-50y10 £125.00
front hub seal 40232-50y10 £5.00
dust seal 40227-50y10 £5.00
front wheel bearing 40210-50y05 £35.00
BRAKE COOOLING DUCT PART NUMBER 63823-54C00
GASKET-EXHAUST ________2069158E01 £2.90 elbow to downpipe
Glass Window runner rubber Drivers side 80330-50C61
Clutch Master Cylinder= 3061054c50 =£74.60 +vat
